Construction

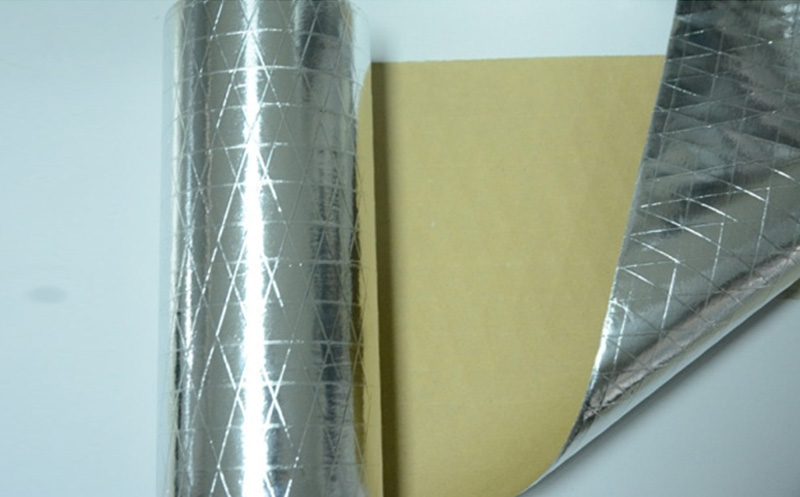

35 to 7 layer co-extruded composite material made of Fiberglass Rainforced mesh in kraft paper with two side special highly reflective aluminum foil.
Typical Physical Property
| Property(Grammage) | Test Method(ISO 536) | Unit(g/sqm) | Results(130–150 (+/-5%)) |
| Water Vapour Transmission | ASTM F 1249 | N | <1 |
| Temperature resistance | ASTM C 1263 –29 ˜66 ´C | - | Remains Flexible No Delamination |
| Emissivity | ASTM E408 | % | 0.03 |
| Reflectivity | ASTM E408 | % | 97% |
| Working Tempreture | - | Celsius | -50 to 110’C |
Applications
Our Minaxi™ FSK-BOTHSIDE insulation are mainly used as aluminium foil roof insulation, reflective foil wall insulation and also could be applied as finishes onto rock wool, glass wool etc. Our product is used as a moisture vapor barrier facing in air conditioning ductworks and cold rooms. This flexible thermal insulation sheets also service as energy insulating barrier in aid duct and HVAC system.
Features
High reflected rate 97% aluminium foil as outer surface could reflect solar light and block thermal radiant energy; Kraft as liner made it much more stronger than single layer of pure aluminum foil, could be fold- ed into any shape so as to install easily.
Packaging Details
- Core ID: 76mm (3inch) Standard
- length: 250 mtrs, Other lengths available On request
- Thickness tolerance: +/-7% Maximum
- 1220mm & 1520mm
