Construction
5 to 7 layer co-extruded composite material made from UV & FR reinforced PP non woven fabric with both side highly reflective Aluminium foil.
Typical Physical Property
| Property(Grammage) | Test Method(ISO 536) | Unit(g/sqm) | Results(165–185 (+/-5%)) |
| Tensile–MD and CD | ASTM D828 | N/25 mm | 100-200 |
| Burst Strength | ASTM D 774 | N/25 mm | 150 |
| Water Vapour Transmission | ASTM F 1249 | N | <1 |
| Temperature resistance | ASTM C 1263 –29 ˜66 ´C | - | Remains Flexible No Delamination |
| Reflectivity | ASTM E408 | % | 97% |
| Emissivity | ASTM E408 | % | 0.03 |
| Working Tempreture | - | Celsius | -50 to 110’C |

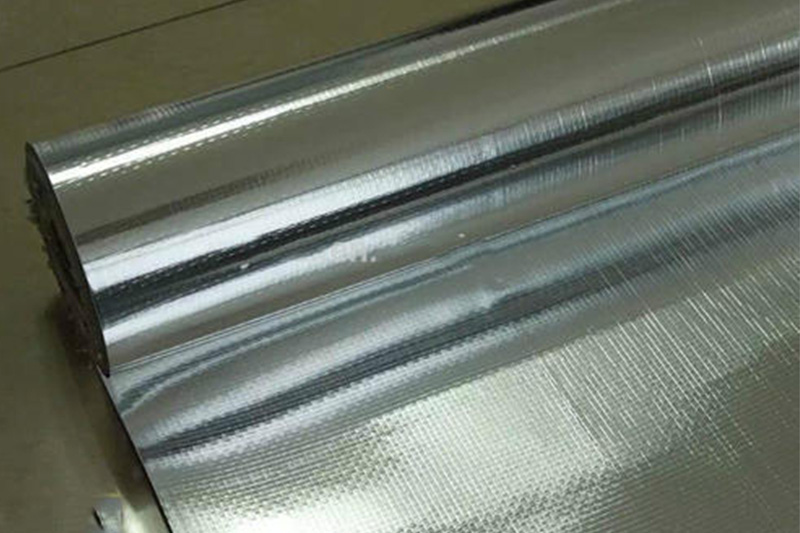

Foil Based Insulation Non Woven Fabric
Our Minaxi™ AFNWAF is consist of Nonwoven fabric which is a fabric-like material made from long fibers, bonded together by chemical, mechanical, heat or solvent treatment as backing, reflective aluminum foil as the outer surface laminated together by LDPE acrylic adhesive, this foil insulation radiant barrier is light weight, environment friendly, soft and easy to fold; usually be installed in dry environment to prevent heat conduction and thermal radiant.
Product Benefits
- Eco friendly,environment friendly and radiant barrier.
- PE woven fabric provides high tensile strength and durability
- Lightweight and easy handling and low cost waterproof type.
- Never use chemical bonding materials.
- PE woven fabric is used; you can sew it and easily install it on big building such a warehouse ceiling, factory building, super market, gm, container liner.
- For heavier basic weight based on order are also available.
- Different lengths and basic weight are available.
Remarks
- Above data are typical results and not the guaranteed performance.
- Tolerance: Weight and Thickness: ±10%; Width: ±2mm; Length: ±0.5%.
- The products should be stored at room temperature away from wet and heat source.
- Please do trial-application and make sure the product can serve the specific application before actually put it to use.
Packaging Details
- Core ID: 76mm (3inch) Standard
- length: 250 mtrs, Other lengths available On request
- Thickness tolerance: +/-7% Maximum
- 1220mm & 1520mm
